Azure Functions missing after zip deploy from GitHub Actions

Deploying Azure Functions via zip deployment from GitHub Actions is a common practice, but sometimes you might encounter a frustrating issue where your functions are present in the wwwroot directory but don’t show up in the Azure portal and can’t be called. This post walks through diagnosing and fixing this specific deployment issue.

The problem

After a successful zip deployment from GitHub Actions, your Azure Functions appear to be deployed correctly, the files are in the wwwroot directory, but:

• Functions don’t appear in the Azure portal UI
• Functions can’t be invoked
• The host seems to be running but not loading any functions

Initial investigation

When this happens, the first place to check is the Azure Function host logs. You can access these through Kudu by navigating to:

1
https://<your-function-app>.scm.azurewebsites.net/DebugConsole

Then navigate to the host log files at:

1
C:\home\LogFiles\Application\Functions\Host

The warning message

In my case, I found a log file containing this warning:

1
2025-09-24T21:26:43.580 [Warning] No job functions found. Try making your job classes and methods public. If you're using binding extensions (e.g. Azure Storage, ServiceBus, Timers, etc.) make sure you've called the registration method for the extension(s) in your startup code (e.g. builder.AddAzureStorage(), builder.AddServiceBus(), builder.AddTimers(), etc.).

This generic warning doesn’t immediately point to the root cause, but it confirms that the host isn’t finding any functions.

Finding the root cause

Digging deeper into the logs revealed the actual error:

1
2025-09-24T21:26:08.923 [Error] Error: Worker was unable to load entry point "dist/src/functions/http_co_speaker_invitations_id_delete.js": \\?\C:\home\site\wwwroot\node_modules\skia-canvas\lib\v6\index.node is not a valid Win32 application.
2
2025-09-24T21:26:08.923 [Information] \\?\C:\home\site\wwwroot\node_modules\skia-canvas\lib\v6\index.node

This error message is the key: is not a valid Win32 application. This indicates a platform architecture mismatch - the deployed binary doesn’t match the runtime platform.

The solution (for me)

The fix is to configure your Azure Function App to use the correct platform architecture. In this case, switching to 64-bit platform resolved the issue:

1. Navigate to your Azure Function App in the Azure portal
2. Go to Configuration > General settings
3. Change Platform from 32 Bit to 64 Bit
4. Save the configuration

After making this change, the functions appeared in the portal and became accessible.

Alternative debugging approach using Application Insights

Instead of manually browsing through Kudu logs, you can use the Azure Function logs with a KQL query that can help:

1. Navigate to your Azure Function App in the Azure portal
2. Go to Logs under the Monitoring section
3. Use the following KQL query to filter for relevant errors:

1
let myAppName = "<your app name>";
2
let startTime = ago(1d);
3
let endTime = now();
4
union traces,requests,exceptions
5
| where cloud_RoleName =~ myAppName
6
| where timestamp between (startTime .. endTime)
7
| where severityLevel > 2
8
| where message has "entry point"

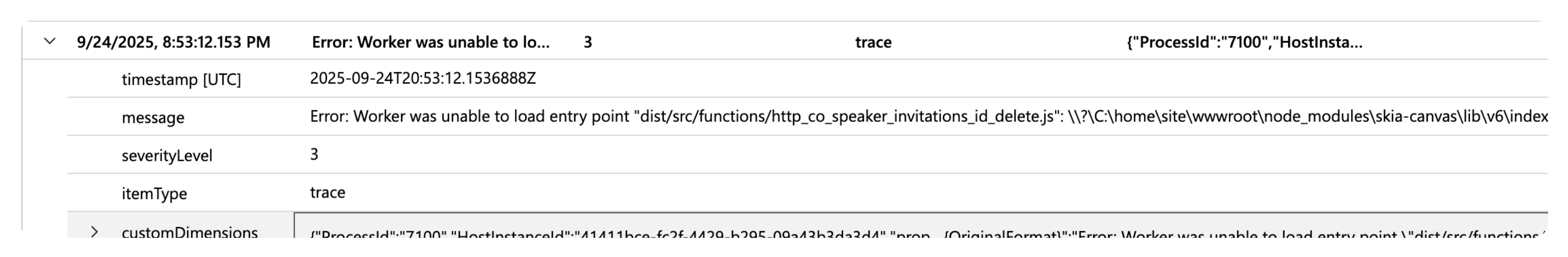

This query will surface any errors related to entry point loading, making it easier to spot platform architecture issues or other deployment problems.

Show image

Conclusion

Platform architecture mismatches can cause frustrating deployment issues that aren’t immediately obvious. The key is knowing where to look for the real error messages beyond the generic warnings. By checking the detailed host logs and ensuring your Azure Function platform configuration matches your deployment artifacts, you can resolve these issues quickly and get your functions running smoothly.
